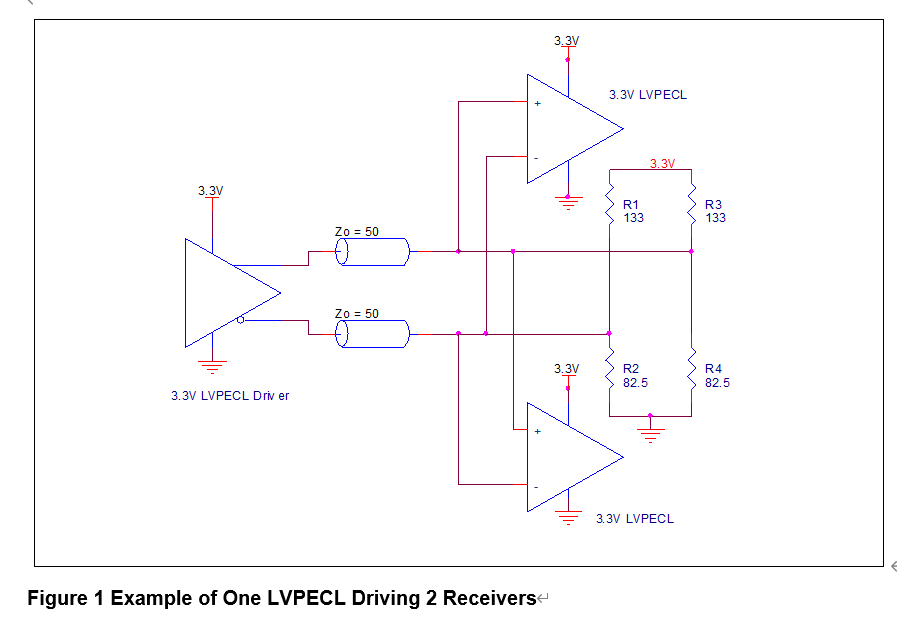

Example of One LVPECL Drives Two Receivers

2021-08-05  作者:可编程晶振之站

摘要:One LVPECL drives two end-point
关键词:LVPECL

Assumption:



-        The receiver is high input impedance without built-in termination

-        The two receivers are placed close to each other to reduce skew

-        The termination R1, R2, R3 and R4 are located near the receivers or after the receiver.
